KLINGER MAXIPROFILE KAMMPROFILE GASKET TYPE 108

Information: Klinger Maxiprofile Type 108

The Klinger Type T108 is a rigid laminated gasket consisting of graphite layers bonded to each face of a solid steel core.
Type graphite T108 gasket was initially designed to provide a high performance, low seating stress gasket replacement to the traditional metal jacketed and compressed asbestos fibre type gaskets utilized on heat exchanger applications.
The core of the Type T108 has the ability to be re used if manufactured from a suitable quality material for the application.
Can be laser cut into many configurations to suit various gasket profiles for heat exchangers

Applications: Klinger Maxiprofile Type 108

Used for boiler and heat exchangers, suitable for narrow sealing faces
Used to create a more stable gasket than laminated graphite materials for large gaskets
Especially suited to use in heat exchangers

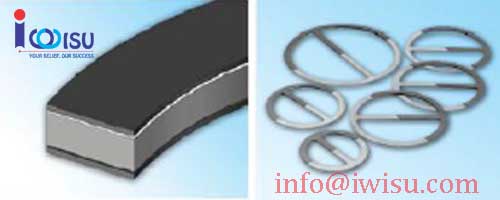

KLINGER MAXIPROFILE KAMMPROFILE TYPE 108

Economical alternative to Maxiprofile Type T109 gaskets for lower pressure, lower critical applications
Medium pressure gasket with a wide seating stress range
Excellent tightness at low bolt loads.
Excellent corrosion resistance
Narrow gasket width available
Particularly suitable for rectangular or non – round shapes

Standard Core materials: SS304L/SS316L ,Carbon Steel/Soft Iron (other materials available on request)
Facing material: Graphite (for PTFE lamination please consult Klinger)
Facing density: 1 g/cm³
Max. temperature: 450°C
Max. pressure: >100 bar – subject to application, flange design etc. Please consult Klinger.
Thickness: Core: 3.0 mm (standard or as specified by customer) Facing: 0.5 mm ,Graphite standard purity, >99% graphite
