KLINGERSIL C-4430 PLUS COMPRESSED FIBRE

COMPRESSED FIBRE

Our range of asbestos-free, calendared sealing materials. Depending on the specific requirements, KLINGERSIL provides excellent resistances (e.g. temperature, mechanical or chemical resistance) in the areas required by the corresponding target industry. Furthermore, KLINGERSIL is easy to cut, handle and fit.

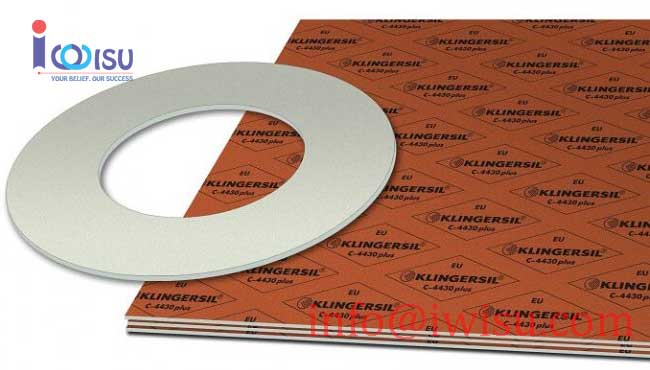

KLINGERSIL C-4430 PLUS

Industry leading stress relaxation and outstanding resistance to hot water and steam

KLINGERSIL C-4430 plus is a premium-quality, high pressure gasket with outstanding stress relaxation and outstanding resistance to hot water and steam.

Basis: Optimum combination of synthetic fibres, bonded with NBR.

Areas of application:

Suitable for use with water and steam at higher temperatures and resistant to oils, hydrocarbons, gases, salt solutions, fuels, alcohols, lubricants, refrigerants, as well as to moderate organic and inorganic acids.

Key features:

• Utilization of KLINGER Quantum production technology
• Optimum combination of synthetic and glass fibres
• Outstanding stress relaxation

Benefits:

• More safety
• Better lifetime
• Better high temperature tightness
• Improved thermal stability

Download data: KLINGERSIL C-4430 PLUS DOCUMENT

Dimensions of the standard sheets

• Sizes 1000 x 1500 mm, 2000 x 1500 mm
• Thicknesses 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
• Tolerances Thickness acc. to DIN 28091-1
  Length ±50 mm, Width ±50 mm
