ĐỒNG HỒ ÁP SUẤT WIKA 212.53

WIKA BOURDON TUBE PRESSURE GAUGE MODEL 212.53

ĐỒNG HỒ ÁP SUẤT WIKA 212.53

ĐỒNG HỒ ÁP SUẤT WIKA 212.53

Thông tin sản phẩm:

Vật liệu: Stainless Steel Case, Process Gauge

Tài liệu: Đồng hồ Wika

ỨNG DỤNG:

  • Intended for adverse service conditions where pulsating or vibration exists (with liquid filling).
  • Hydraulics and compressors
  • Suitable for gaseous or liquid media that will not obstruct the pressure system.

ĐẶC TRƯNG CỦA SẢN PHẨM:

  • Vibration and shock resistant (with liquid filling)
  • Stainless steel case
  • Pressure ranges up to 15,000 psi (1,000 bar)

THÔNG SỐ KỸ THUẬT

Tiêu chuẩn Thiết kế: ASME B40.100 & EN 837-1

Kích thước mặt đồng hồ: 2”, 2½” & 4” (50, 63 & 100 mm)

Độ chính xác:

  • 2” & 2½”: ± 2/1/2% of span (ASME B40.100 Grade A)
  • 4”: ± 1% of span (ASME B40.100 Grade 1A)

Thang đo:

  • Vacuum / Compound to 200 psi (16 bar)
  • Pressure from 15 psi (1 bar) to 15,000 psi (1,000 bar)
  • Pressure from 15 psi (1 bar) to 10,000 psi (700 bar) – 2” size or other equivalent units of pressure or vacuum

Áp suất làm việc:

  • 2 & 2½”:   Steady:   ¾ full-scale value
  • Fluctuating:  2/3 full-scale value
  • Short time: full-scale value

Nhiệt độ vận hành:

  • Ambient: -40°F to +140°F (-40°C to +60°C) – dry
  • -4°F to +140°F (-20°C to +60°C) – glycerine filled
  • -40°F to +140°F (-40°C to +60°C) – silicone filled
  • Medium: +140°F (+60°C) maximum

Các lỗi nhiệt nhiệt độ: Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% of span for every 18°F (10°K) rising or falling.

Weather protection: Weather tight (NEMA 4X / IP 66)

Pressure connection

  • Material: copper alloy

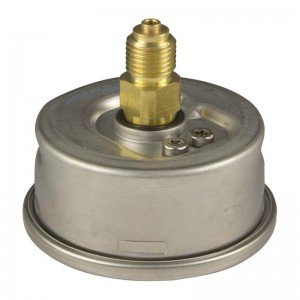

  • Lower mount (LM) or center back mount (CBM) –
  • Lower mount (LM) or lo er back mount (LBM) – 4”
  • ⅛” NPT, ¼” NPT or ½” NPT limited to wrench flat area ABS (2” & 2½”) and white aluminum (4”)

Bourdon tube:

  • 2” (50 mm) ≤ 870 psi (60 bar): C-shape copper alloy
  • 2” (50 mm) > 870 psi (60 bar): Helical copper alloy
  • 2½” (63 mm) ≤ 870 psi (60 bar): C-shape copper alloy
  • 2½” (63 mm) > 870 psi (60 bar): Helical copper alloy
  • 2½” (63 mm) > 6,000 psi (400 bar) : Helical stainless steel
  • 4″ (100 mm) ≤ 1,000 psi (70 bar): C-shape copper alloy
  • 4″ (100 mm) > 1,000 psi (70 bar): Helical stainless steel

Movement: Copper alloy

Dial: White ABS (2” & 2½”) and white aluminum (4”)

Pointer: Black aluminum

Case: 304 stainless steel with vent plug and stainless steel crimp ring. Suitable for liquid filling.

Case connection sealed with O-ring, (O-ring material dependent on the case fill):

  • 2½”: EPDM O-ring for Glycerine case fill; Viton O-ring for Silicone fill
  • 4”: EPDM O-ring for Glycerine or Silicone case fill; Viton O-ring for Halocarbon or Fluorolube fill

Window: Polycarbonate with Buna-N gasket

Case fill: Glycerine 99.7% – Type 213.53

Từ khóa tìm kiếm:

Đồng hồ áp WIKA ; Đồng hồ dầu đo áp WIKA ; Đồng hồ áp suất WIKA ; Đồng hồ áp suất Đức ; Đông hồ  WIKA nhập khẩu ; Đồng hồ đo áp suât chân không WIKA ; Đồng hồ WIKA ; Đồng hồ WIKA Đức ; WIKA 212.53 ; Đồng hồ Bourdon đo áp suất wika 212.53 ; wika 212.53 ; đồng hồ wika 212.53 ; đồng hồ áp 212.53 wika, Đồng hồ wika 212.53

Website liên kết: thegioivalve, thegioimatbich, iwisu , thietbinhapkhau

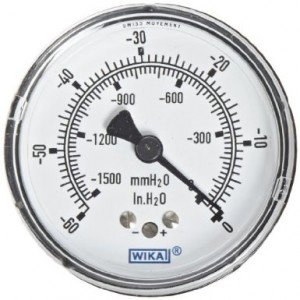

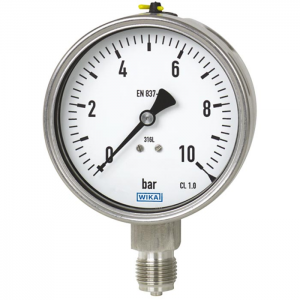

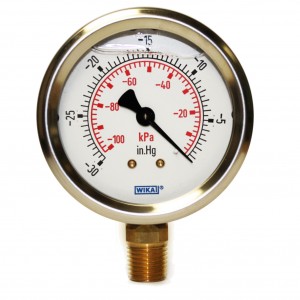

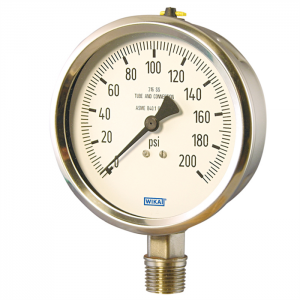

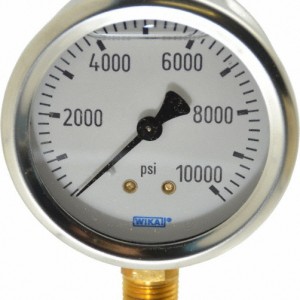

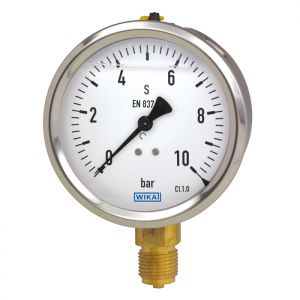

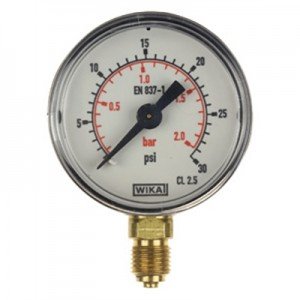

Sản phẩm cùng loại:
